un represents a number in the sequence for n is an integer converges absolutely is known as the region of convergence (ROC) of U (z)

CONVERGENCE OF Z-TRANSFORMS

Def:- Region of Convergence (ROC)

The region of the Z-plane in which

u_n represents a number in the sequence for n is an integer converges absolutely is known as the region of convergence (ROC) of U (z)

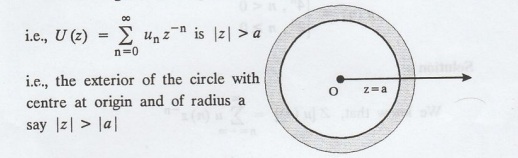

Note: (1) The region of convergence of a one sided Z transform of a right-sided sequence

i.e., the exterior of the circle with centre at origin and of radius a say z>|a|

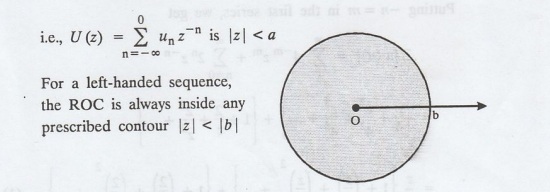

Note (2) The region of convergence of a one sided Z transform of a left-sided sequence

For a left-handed sequence, the ROC is always inside any prescribed contour z < |b|

Note: (3) The region of convergence of two sided Z transform defined by
