Membrane Aerated Biofilm Reactor (MABR) technology provides a revolutionary improvement in aerobic wastewater treatment for a number of reasons, particularly its high energy efficiency and increased treatment capacity, compared to traditional wastewater treatment systems.
RECENT
ADVANCES IN SEWAGE TREATMENT
•
Membrane Aerated Biofilm Reactors (MABR)
•
Anaerobic Membrane Bioreactor
•
Aerobic Granular Sludge
•
Membrane Fuel Cells
Membrane Aerated
Biofilm Reactor
Membrane
Aerated Biofilm Reactor (MABR) technology provides a revolutionary improvement
in aerobic wastewater treatment for a number of reasons, particularly its high
energy efficiency and increased treatment capacity, compared to traditional
wastewater treatment systems.
Much
of the energy used in aerobic treatment is tied to aeration, the introduction
of air bubbles into wastewater via pumps, paddles, and other mechanisms. This
enables aerobic bacteria to digest waste, but aeration can be very inefficient,
so reducing this massive energy consumption is a major goal.
MABR
represents one such technological breakthrough. MABR systems passively
circulate oxygen through a spirally wound membrane at atmospheric pressure.
MABR's self-respiring membrane allows bacteria to consume oxygen more readily
for a 90% reduction in energy used for aeration.
What's
more, the membrane surface quickly accumulates a biofilm of bacteria that
establishes a Simultaneous Nitrification-Denitrification (SND) process to
produce a high- quality, low-nitrogen effluent suitable for reuse in
irrigation. The MABR process is also low-maintenance. All of these advantages
add to an overall reduction in energy use.
Anaerobic Membrane
Bioreactor
An
MBR system combines anaerobic digestion with physical separation membranes,
resulting in maximum organic load removal and biogas production. The technology
produces a superior effluent quality compared to any anaerobic technology on
the market.
An
MBR is ideally suited for treating wastewater streams or slurries with very
high concentrations of organics, solids, and fat, oil, and grease (FOG). The
membrane barriers ensure complete solids retention, efficient system operation,
and process stability at all times even under peak hydraulic and organic
loading conditions. Since gravity settling is not required, higher organic loadings
and mixing intensities can be employed than with other anaerobic technologies.
To
increase loading capacity and improve performance and effluent quality,
existing anaerobic systems can easily be upgraded to an An MBR. The system can
also be paired with an ADIR aerobic membrane bioreactor (MBR) to provide
complete treatment and meet even the strictest discharge requirements.
COST SAVINGS
•
Minimize sludge handling and disposal costs\
•
Save on energy costs:
•
Significantly less energy-intensive than aerobic systems
•
Biogas can be utilized to reduce fossil fuel consumption
•
Minimize aerobic polishing requirements
•
Eliminate primary treatment and wastewater surcharges
•
Reduce or eliminate chemical usage
PROCESS ADVANTAGES
•
Membrane barrier ensures complete solids retention and process stability
•
Large biomass inventory ensures efficient treatment at all times
•
Minimal pre-treatment and post-treatment (aerobic polishing) requirements
•
Eliminates issues with gravity clarification
•
Handles high organic loadings and mixing intensities
•
Can digest high amounts of solids and FOG
ENVIRONMENTAL BENEFITS
•
Consistent, high quality effluent
•
Very low BOD
•
Free of TSS
•
Continuously meet discharge requirements
•
Small footprint
•
Convert organic waste to recoverable green energy (heat and power)
•
Waste sludge suitable for land application
•
Improve local and global water security
SIMPLIFIED OPERATION &
MAINTENANCE
•
Minimal operator attention
•
Reduced sludge handling
•
Superior membrane durability and performance with low maintenance:
•
Long lifetime
•
Simple, infrequent cleaning procedure
•
Membranes are cleaned in place
Aerobic Granular
Sludge Technology
Aerobic
Granular Sludge Technology is an innovative biological wastewater treatment
technology that provides advanced treatment using the unique features of
aerobic granular biomass. The unique process features of the technology
translate into a flexible and compact process that offers energy efficiency and
significantly lower chemical consumption.

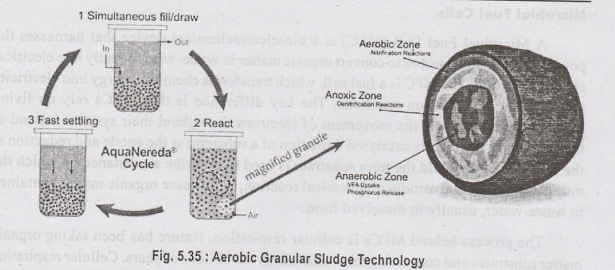

HOW IT WORKS
Batch
Cycle Structure
Based
on the unique characteristics of granular biomass, the Aerobic Granular Sludge
Technology uses an optimized batch cycle structure. There are three main phases
of the cycle to meet advanced wastewater treatment objectives (Fill/Draw,
React, Settling). The duration of the phases will be based upon the specific
waste characteristics, the flow and
FEATURES & SPECIFICATIONS
•
Robust structure of granule withstands fluctuations in chemical spikes, load,
salt, pH and toxic shocks.
•
No secondary clarifiers, selectors, separate compartments, or return sludge
pumping stations.
•
Settling properties at SVI values of 30-50 mL/g allow MLSS concentrations of
8,000 mg/l or greater.
•
Proven Enhanced Nutrient Removal (ENR).
•
Simplified operation with fully automated controls.
BENEFITS
•
Optimal biological treatment is accomplished in one effective aeration step.
•
Four times less space required compared to conventional activated sludge
systems.
•
Energy savings up to 50% compared to activated sludge processes.
•
Robust process without a carrier.
•
Significant reduction of chemicals for nutrient removal due to the layered
structure and biopolymer backbone of the granule.
•
Lowest life-cycle cost.
Microbial Fuel Cells
A
Microbial Fuel Cell (MFC) is a bio-electrochemical device that harnesses the
power of respiring microbes to convert organic matter in waste-water directly
into electrical energy. At its core, the MFC is a fuel cell, which transforms
chemical energy into electricity using oxidation-reduction reactions. The key
difference is that MFCs rely on living biocatalysts to facilitate the movement
of electrons throughout their systems instead of the traditional chemically
catalysed oxidation of a substrate at the anode and reduction at the cathode.
In this field the term substrate is used to describe a substance on which the
microorganism acts to produce a chemical reaction, in this case organic matter
contained in waste-water, usually in dissolved form.
The
process behind MFCs is cellular respiration. Nature has been taking organic
matter substrates and converting them into energy for billions of years.
Cellular respiration is a collection of metabolic reactions that cells use to
convert nutrients into adenosine triphosphate (ATP), which fuels cellular
activity. The overall reaction can be considered an exothermic redox reaction.
In
order for a fuel cell to work a complete circuit is needed. In the case of the
MFC the cathode and an anode are separated by a cation selective membrane and
linked together with an external conductor through the load. When an organic
"fuel" is fed into the anode chamber, the bacteria oxidise and reduce
the organic matter to generate the life sustaining ATP that fuels their
cellular machinery. Protons, electrons, and carbon dioxide are produced as
byproducts, with the anode serving as the electron acceptor in the bacteria's
electron transport chain.
The
electrons pass from the anode to the cathode through the external load
connection. At the same time protons pass freely into the cathode chamber
through the proton exchange membrane separating the two chambers. Finally
oxygen present at the cathode recombines with hydrogen and the electrons from the
cathode to produce water, completing the reaction.
The
use of biological organisms responsible for catalysing electrochemical
reactions, gives these systems a level of complexity that is perhaps above that
of already complex electrochemical systems (e.g. batteries, fuel cells and
supercapacitors). The main differences of MFCs to the conventional low
temperature fuel cells are:
•
The electrocatalyst is biotic (electroactive bacteria or proteins) at the
anode.
•
The temperature can range between 15 and 45°C, with close to ambient levels as
optimum.
•
Neutral pH working conditions.
•
Utilisation of complex biomass (often different types of waste or effluent) as
anodic substrate.
•
A promising moderate environmental impact assessed through life cycle analysis.
MFC
construction
A
MFC consists of an anode and a cathode separated by a cation specific membrane.
Microbes at the anode oxidise the organic substrate, generating protor.s which
pass through the membrane to the cathode, and electrons which pass through the
anode to an external circuit to generate a current. The problem is collecting
the electrons released by bacteria as they respire. This leads to two types of
MFCs: mediator and mediatorless. The mediatorless MFC is the most promising and
is the main version used in developments. There are two basic versions of the
MFC, the two cell and the single cell.
Two
Cell MFC
This
is illustrated in (Fig. 5.37 (a)). The cell consists of two compartments,
containing the anode and cathode, separated by a permeable membrane. The anode
cell contains the substrate (wastewater or organic material) and the anode,
which is coated with a surface film of microorganisms. The cathode cell
contains the cathode and the electrolyte. Substrate is fed to the anode cell
and oxygen to the cathode cell. The anode cell is maintained in and anaerobic
state i.e. is kept free of oxygen.
Single
Compartment MFC
The
single compartment uses an external air cathode which is separated from the
inside of the cell by the membrane (Fig. 5.37 (b)). The air cathode version
gives a higher power density than the two chamber version. In practice the MFCs
are coupled together in stacks to provide the required voltage.
MFCS and Waste-Water
Treatment
All
types of waste-water containing organic matter can be treated by this process,
including domestic waste-water, brewery effluent, and much else. Several plants
are in operation and have shown good results. Use of MFCs for waste-water
requires a design which allows the waste-water to flow through the cell over
the anode surface. Various configurations have been adopted for this purpose,
including the tubular MFC where the cathode is placed on the outside of the
tube and the anode occupies the full internal space. Waste-water flows through
the anode from one end to the other.
MFC
reactions
The
mechanism of oxidation and reduction in the MFC is not clearly understood, and
various reactions have been proposed to explain the process. An example using
acetate as the substrate follows:
