PART-A QUESTIONS AND ANSWERS
1.
What conditions are assumed in deriving the one dimensional wave equation?
See Page No. 3.13 LAJ
2.
What are the various solutions of
See Page No. 3.11
3.

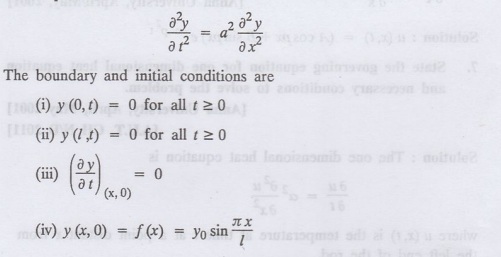

A string is stretched and fastened to two points / apart. Motion is started by
displacing the string into the form y = yo sin pppppppp from which it is
released at time t = 0. Formulate this problem as the boundary value problem.
Solution:
The displacement function y (x, t) is the solution of the wave equation.
4.
A string of length 27 stretched to a constant tension T, is fastened at both
the ends and hence fixed. The mid point of the string is taken to a height b
and then released from rest in that position.
It
is desired to solve for transverse vibrations of the string. Write the
governing equation and the corresponding conditions.
See Page No. 3.24
5.

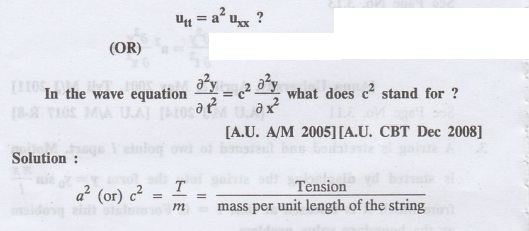

What is the constant a2 in the wave equation
6. State the suitable solution of
the one dimensional heat equation
7.

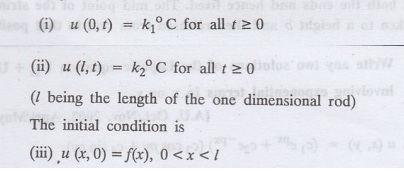

State the governing equation for one dimensional heat equation and necessary
conditions to solve the problem.
Solution:
The one dimensional heat equation is
where u (x, t) is the temperature
at time t at a point distant x from the left end of the rod.
8.

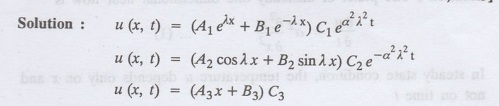

Write all variable separable solutions of the one dimensional heat equation u1
= άuxx
Solution
:
9.
Write down the diffusion problem in one-dimension as a boundary value problem
in two different forms.
Solution
:
10.
State any two laws which are assumed to derive one dimensional heat equation.
Solution
:
(i) Heat flows from higher to lower
temperature.
(ii) The rate at which heat flows
across any area is proportional to the area and to the temperature gradient
normal to the curve. This constant of proportionality is known as the thermal
conductivity (k) of the material. It is known as Fourier law of heat
conduction.
11. Write any two solutions of the
Laplace equation Uxx + Uyy involving exponential terms in
x or y.

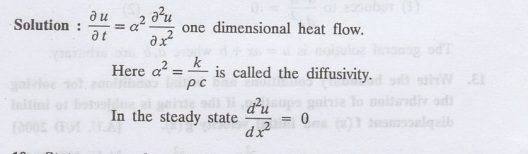

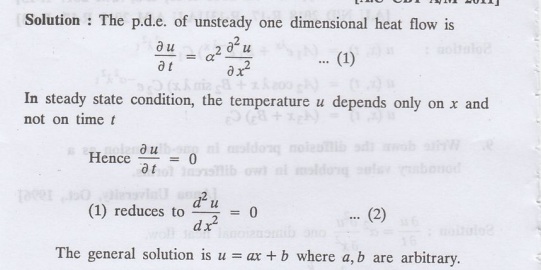

12. In steady state conditions,
derive the solution of one dimensional heat flow equation.

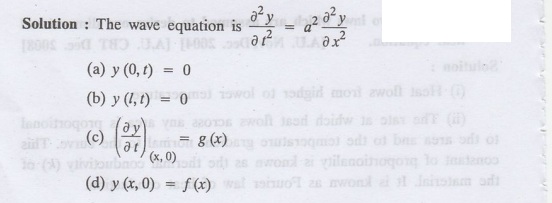

13. Write the boundary conditions
and initial conditions for solving the vibration of string equation, if the
string is subjected to initial displacement f (x) and initial velocity g(x).
14. Write down the governing
equation of two dimensional steady state heat conduction.

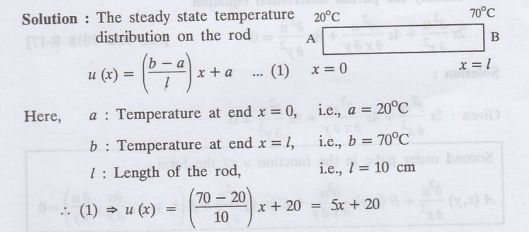

15. The ends A and B of a rod of length 10 cm have their temperature kept at 20°C and 70°C. Find the steady state temperature distribution on the rod.
16.
Write down the three possible solutions of Laplace equation in two-dimensions.
Solution
:
17.
Write down the partial differential equation governing the transverse
vibrations of an elastic string.
18.

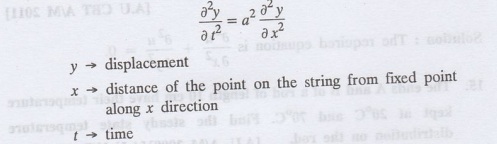

Explain the various variables dominating the wave equation.
Solution:
The wave equation is .
19.

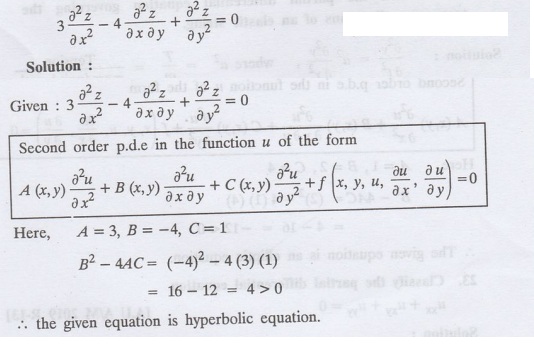

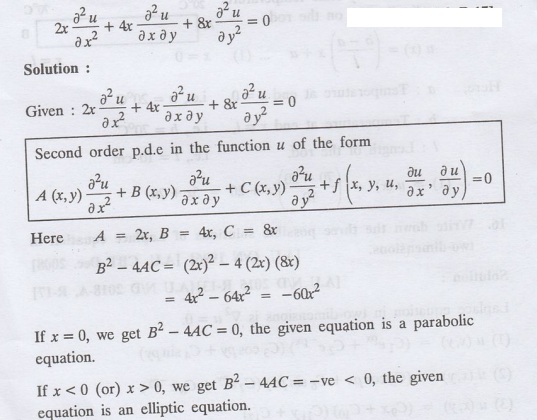

Classify the partial differential equation
20.
Classify the partial differential equation
21.

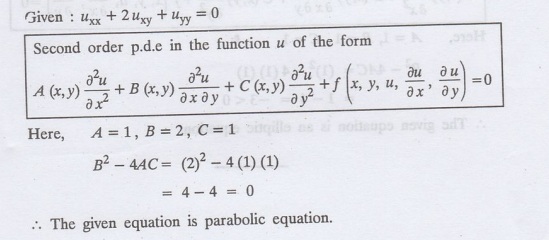

Classify the partial differential equation uxx + 2uxy + uyy=0
Solution
:
.
22.
Classify the partial differential equation
Solution
:
23.
Classify the partial differential equation
