ODD AND EVEN FUNCTIONS
Certain functions defined in
symmetric ranges of the form (-π, π), (-1, 1) can be classified as even and odd
functions. 0)

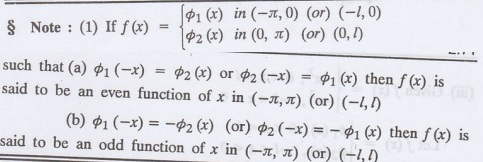

Note
1: Functions
defined in (-л, л) and (-1, 1) may be either even or odd.
2. Functions defined in
non-symmetric range like (0, 2л), Jedi (0,27) the case even or odd does not
arise.
Definition:
f(x) is said to be an even function

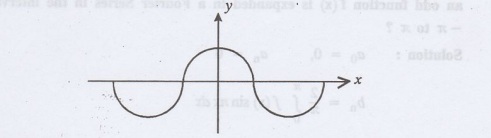

of x in (-1, 1) if f(−x)=f (x) Geometrically, the graph of an even function
will be symmetrical with respect to Y axis.
Example: cosx, | x |, x2,
x sin x
Definition :

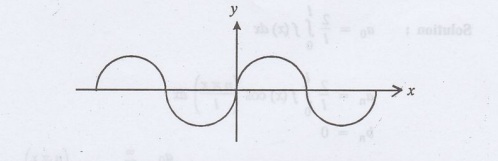

f(x) is said to be an odd function
of x in (-1,1) if f(x)=-f(x) Geometrically, the graph of an odd function will be symmetrical about the
origin.
Example:
sinx, x3, x cos x
Example

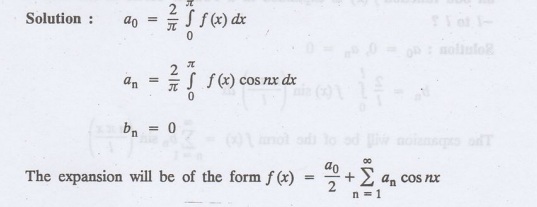

2.2.1 What are the values of the Fourier constan when an even function f(x) is
expanded in a Fourier Series in the interval -πιο π?
Solution
:

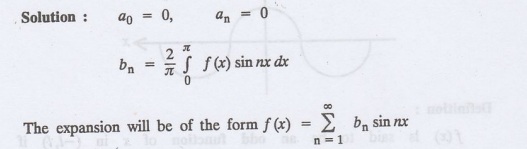

Example 2.2.2: What are the values
of the Fourier constants when an odd function f(x) is expanded in a Fourier
Series in the interval –π tο π?
Solution
:
Example

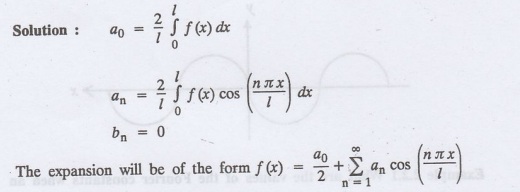

2.2.3: What are the values of the Fourier constants when an even function f(x)
is expanded in a Fourier Series in the interval -l tol ?
Solution
:
Example

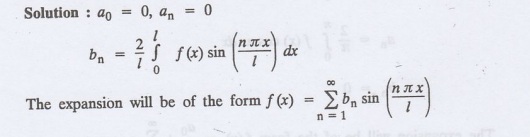

2.2.4: What are the values of the Fourier constants when an odd function f (x)
is expanded in a Fourier series in the interval -1 to 1 ?
Solution:
Example

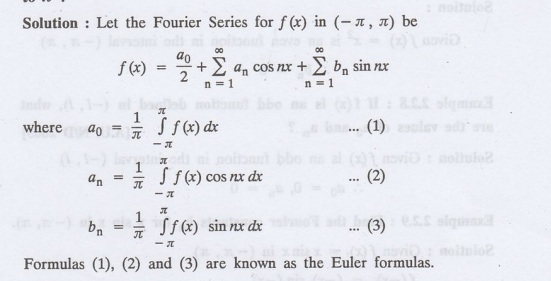

2.2.5: What are the values of the Fourier constants when f(x) is neither even
nor odd in a Fourier series in the interval -л to π?
Example

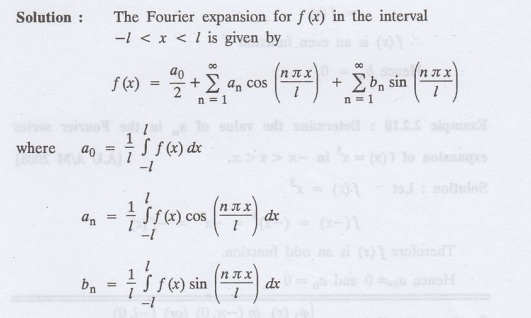

2.2.6: What are the values of the Fourier constants when f(x) is neither even
nor odd in a Fourier series in the interval -l to l ?
Solution :
Example
2.2.7: Find b in the expansion of as a Fourier Series in (-л, л).
Solution
:
Example
2.2.8: If f(x) is an odd function defined in (-1, 1), what are the values a0
of an ?
Solution
:;
Example
2.2.9 Find the Fourier constants b for x sin x in (-л, л).
Example
2.2.10: Determine the value of an in the Fourier series expansion of f (x) = x3
in - < x < л.
Solution:
Let f(x) = x3
f(-x) = (-x)3 = -x3 = -f(x)
Therefore f(x) is an odd function.
Hence a0 = 0 and an
= 0
Example

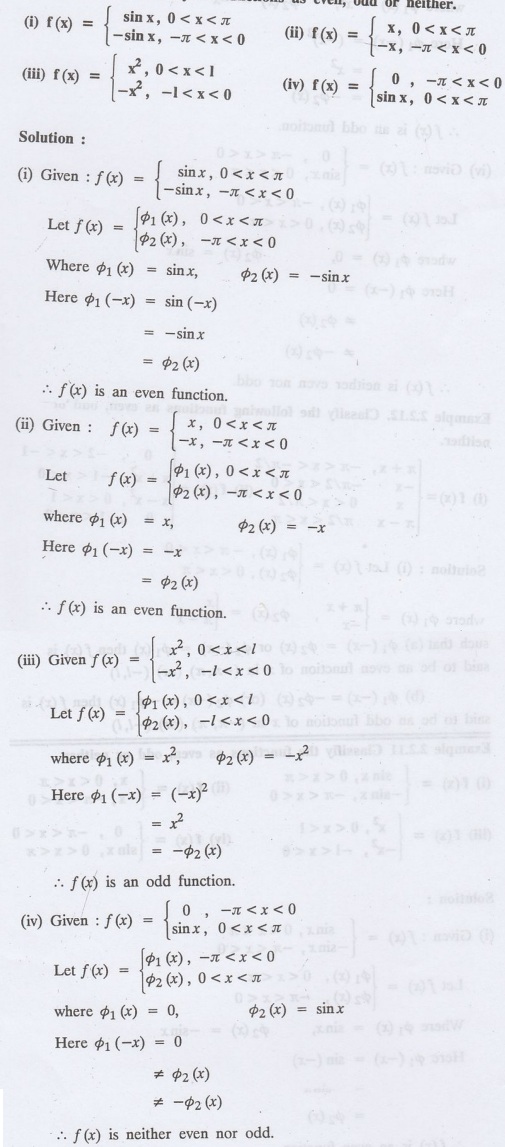

2.2.11 Classifiy the functions as even, odd or neither.

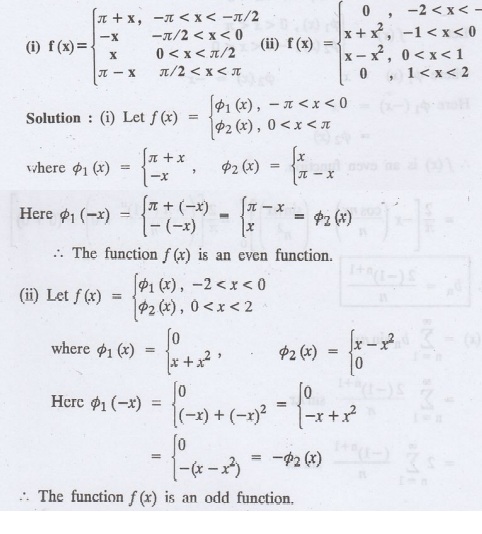

Example 2.2.12. Classify the
following functions as even, odd or neither.
